FEATURES
SDVWI-II Smart digital vacuum wax injection system. Specially used for high-precision products. Perfect with memory chips reader for rubber molds.
Specifications
| Voltage | AC 220V, 50/60Hz |
| Power comsumption | 550W |
| Air supply | 0.3-0.7Mpa |
| Temperature Display Range | 40-99.9°C |
| Temperature Setting Range | 40-99.9°C |
| Injection Pressure | 10-500Kpa |
| Clamp Pressure | 30-500Kpa |
| Forward Pressure | 30-500Kpa |
| Vacuum Timer | 0-99.9 S |
| Injection Timer | 0-99.9 S |
| Hold Time | 0-30 S |
| Wax Pot Capacity | 3kg |
| Temperature accuracy | +/- 0.2°C |
| Max. rubber size | 105x105x55mm |
| Dimensions | 600x550x580mm(L*W*H) |
| Net Weight | Approx. 33kg |

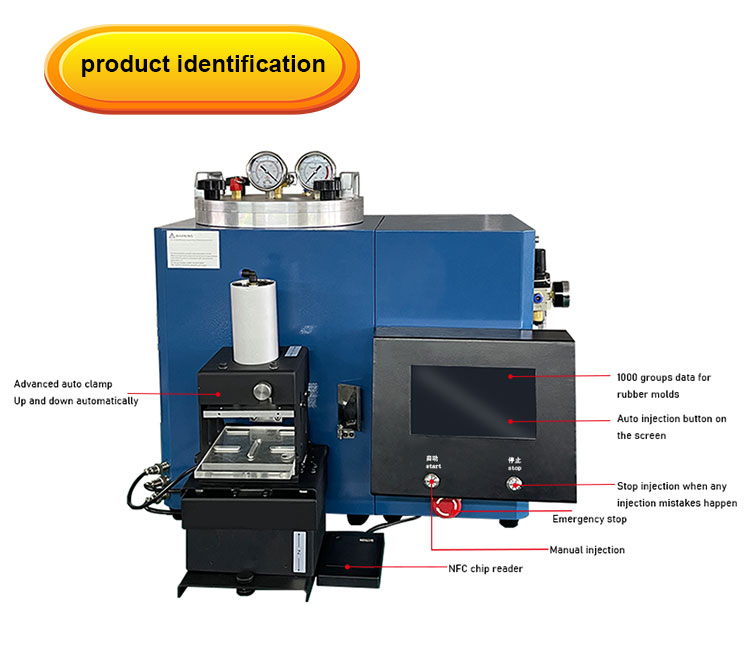

Features
1. When any wax injection problem occurs, one key button can stop the wax injection function and return the clamp to its original position.
2. Manual injection button can be easily seen on the controller.

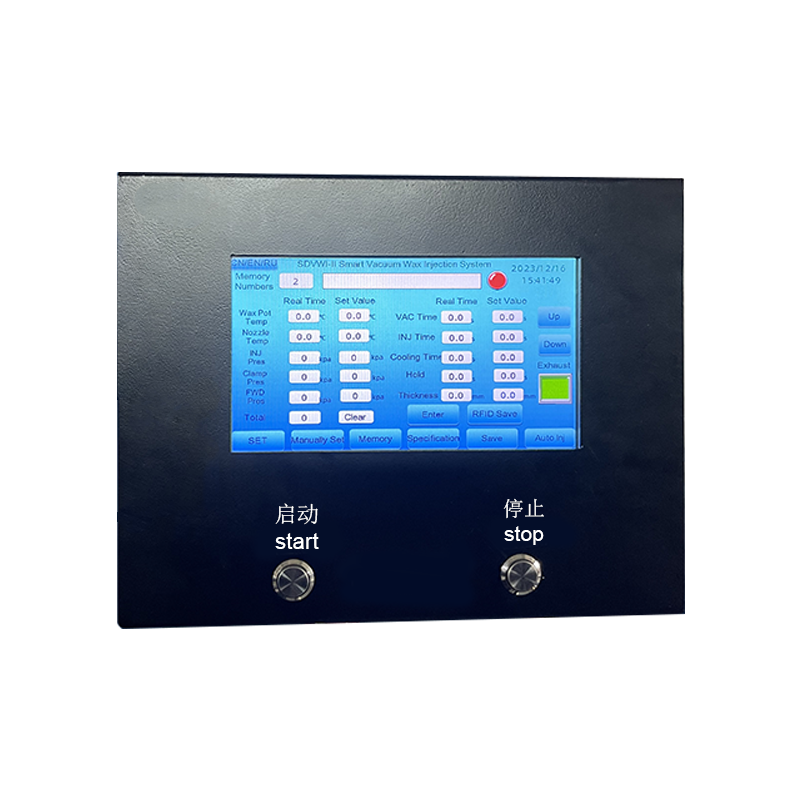

3. Auto injection is available, can be seen on the touch screen.
4. Innovative design of auto clamp, can input the thickness number then auto clamp moves to the right position automatically, can also manually press "Up" or "Down" to adjust auto clamp.
5. With RFID chip reader, can store data by chips for rubber molds, no limits.
6. When without RFID, can store max. 1000 groups data on the touch screen.
7. English/Chinese, Russian language are available
8. Precision wax injection result. High efficiency.
9. Remaining wax % of wax pot can be seen on the screen.
10. Rubber molds with vacuum before injection to ensure high quality products.
