Features
With temperature control, accuracy up to ±1°C.
Ultra-human design, the operation is simpler than others.
Use imported Mitsubishi controller.

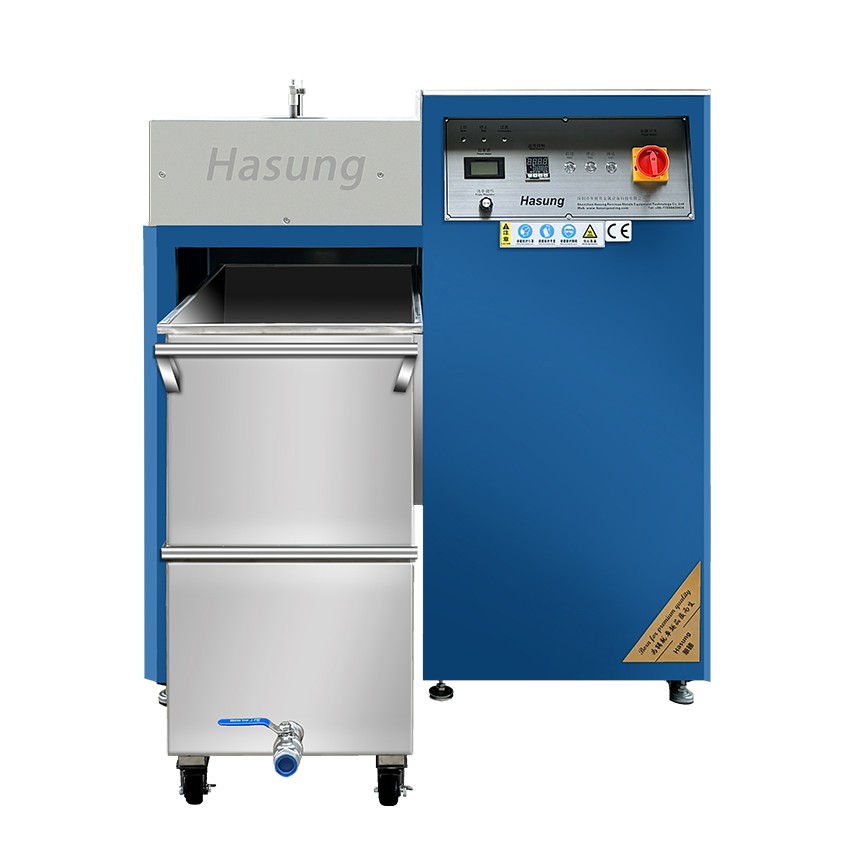

Silver Granulator with tempterature control(Gold Silver Grains Casting Machine, Silver Granulating Machine).
This machine adopts IGBT advanced heating technology, the casting effect is very good, the system is stable and safe,
molten gold capacity is optional, and the granulated metal specification is optional. The granulation speed is fast and
no noise. Perfect advanced testing and protection functions make the whole machine safe and durable. The machine
has a split design and the body has more free space.
Specifications
| Model No. | HJ-GS4 | HJ-GS8 | HJ-GS20 |
| Power | 380V, 50/60Hz, 3 Phases | 380V, 50/60Hz, 3 Phases | 380V, 50/60Hz, 3 Phases |
| Output Power | 15KW | 15KW | 30KW |
| Max temperature | 1600°C | 1600°C | 1600°C |
| Temperature accuracy | ±1°C | ±1°C | ±1°C |
| Casting method | Gravity granulation | Gravity granulation | Gravity granulation |
| Capacity | 4kg (Gold) | 8kg (Gold) | 20kg (Gold) |
| Dimensions (Approx.) | 1100x1020x1345mm | 1100x1020x1345mm | 1100x1020x1450mm |
| Weight (Approx.) | 180kg | 200kg | 280kg |
| Application metals | Gold, K-gold, Silver Copper | Gold, K-gold, Silver Copper | Gold, K-gold, Silver Copper |
